TESCAN DynaTOM Micro CT

Tackle the most complex 4D in-situ characterization challenges

TESCAN DynaTOM is the world’s first and only laboratory micro-CT system dedicated for your most demanding in-situ and dynamic experiments. Dynamic imaging to non-destructively study the 4D evolution of materials and samples in their real-world environments has been a major motivation for X-ray tomography for decades.

Where conventional micro-CT designs have fallen short, TESCAN has risen to meet this challenge with DynaTOM.

CT-dynatom01_reflection

Designed for 3D in situ experiments

A Horizontally rotating source and detector and a fixed sample allow the most complex in situ apparatus to be used without cable management issues.

Perform true 4D imaging with Dynamic CT

High temporal resolution, continuous and uninterrupted scanning, and specialized 4D software tools bring synchrotron-like capabilities to the lab

Gain insights to the experiment as it is happening

Reconstruction during the experiment reduces the number of iterations for a successful test. Unique temporal reconstruction techniques allow users to fully utilize the uninterrupted data achievable through dynamic CT.

TESCAN DynaTOM

A temporal resolution per rotation of 7.5 seconds enables such fast events to be captured (at 12.5-micron voxel size), and DynaTOM’s unique gantry-based design facilitates the application of complex flow rigs and fluid lines without risk of entanglement during continuous acquisition.

MODELS & FEATURES LIST

TESCAN UniTom HR

TESCAN UniTom XL

CT-dynatom01_jpg

TESCAN DynaTOM

Resolution

600nm

3 µm

3 µm

Accelerating voltage

160 kV

180/230 kV

130 kV

Max sample size (H/W)

70/50 cm

110/60 cm

110/20 cm

Scanning envelope (H/W)

40/30 cm

100/60 cm

48/17 cm

Temporal resolution

< 5 seconds

< 3 seconds

< 8 seconds

Source power

50 W

300 W

39 W

Detector

High speed, med FOV
(1868 x 1488 px)

High speed, large FOV
(3024 x 1868 px)

Low attenuation
(2892x 2256 px)

High speed, large FOV

High speed
(1944 x 1536 px)

Weight

2950 kg

7500 kg

4950 kg

System dimensions (LxWxH)

2.06 m x 1.04 m x 2.42 m

3.5 m x 1.5 m x 2.1 m

1.70 m x 1.87 m x 2.25 m

More about UniTOM HR

More about UniTOM XL

More about DynaTOM

TESCAN UniTom HR

Resolution: 600nm

Accelerating voltage: 160 kV

Max sample size (H/W): 70/50 cm

Scanning envelope (H/W): 40/30 cm

Temporal resolution: < 5 seconds

Source power: 50 W

Detector: High speed, med FOV
(1868 x 1488 px)

High speed, large FOV
(3024 x 1868 px)

Low attenuation
(2892x 2256 px)

Weight: 2950 kg

System dimensions (LxWxH): 2.06 m x 1.04 m x 2.42 m

More about UniTOM HR

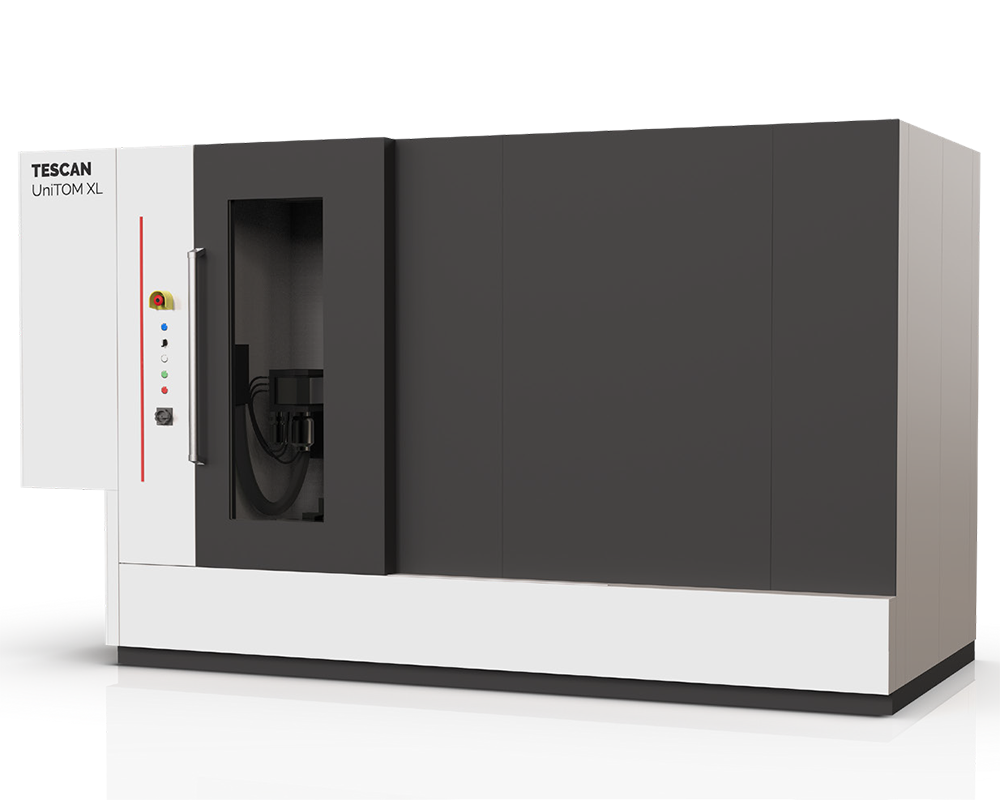

TESCAN UniTom XL

Resolution: 3 µm

Accelerating voltage: 180/230 kV

Max sample size (H/W): 110/60 cm

Scanning envelope (H/W): 100/60 cm

Temporal resolution: < 3 seconds

Source power: 300 W

Detector: High speed, large FOV

Weight: 7500 kg

System dimensions (LxWxH): 3.5 m x 1.5 m x 2.1 m

More about UniTOM XL

CT-dynatom01_jpg

TESCAN DynaTOM

Resolution: 3 µm

Accelerating voltage: 130 kV

Max sample size (H/W): 110/20 cm

Scanning envelope (H/W): 48/17 cm

Temporal resolution: < 8 seconds

Source power: 39 W

Detector: High speed
(1944 x 1536 px)

Weight: 4950 kg

System dimensions (LxWxH): 1.70 m x 1.87 m x 2.25 m

More about DynaTOM
